3. Compile the ONNX model

This chapter takes yolov5s.onnx as an example to introduce how to compile and transfer an onnx model to run on the BM1684X platform.

The model is from the official website of yolov5: https://github.com/ultralytics/yolov5/releases/download/v6.0/yolov5s.onnx

This chapter requires the tpu_mlir python package.

platform

file name

info

cv183x/cv182x/cv181x/cv180x

xxx.cvimodel

please refer to the CV18xx Guidance

Other

xxx.bmodel

please refer to the following

3.1. Install tpu_mlir

Go to the Docker container and execute the following command to install tpu_mlir:

$ pip install tpu_mlir[onnx]
# or
$ pip install tpu_mlir-*-py3-none-any.whl[onnx]

3.2. Prepare working directory

Please download tpu-mlir-resource.tar from Assets and unzip it, and rename the folder to tpu_mlir_resource :

$ tar -xvf tpu-mlir-resource.tar
$ mv regression/ tpu-mlir-resource/

Create a model_yolov5s directory, and put both model files and image files into the model_yolov5s directory.

The operation is as follows:

1$ mkdir model_yolov5s && cd model_yolov5s
2$ wget https://github.com/ultralytics/yolov5/releases/download/v6.0/yolov5s.onnx
3$ cp -rf tpu_mlir_resource/dataset/COCO2017 .
4$ cp -rf tpu_mlir_resource/image .
5$ mkdir workspace && cd workspace

3.3. ONNX to MLIR

If the input is image, we need to know the preprocessing of the model before transferring it. If the model uses preprocessed npz files as input, no preprocessing needs to be considered. The preprocessing process is formulated as follows ( \(x\) represents the input):

\[y = (x - mean) \times scale\]

The image of the official yolov5 is rgb. Each value will be multiplied by 1/255, respectively corresponding to 0.0,0.0,0.0 and 0.0039216,0.0039216,0.0039216 when it is converted into mean and scale.

The model conversion command is as follows:

$ model_transform \
    --model_name yolov5s \
    --model_def ../yolov5s.onnx \
    --input_shapes [[1,3,640,640]] \
    --mean 0.0,0.0,0.0 \
    --scale 0.0039216,0.0039216,0.0039216 \
    --keep_aspect_ratio \
    --pixel_format rgb \
    --output_names 350,498,646 \
    --test_input ../image/dog.jpg \
    --test_result yolov5s_top_outputs.npz \
    --mlir yolov5s.mlir

The main parameters of model_transform are described as follows (for a complete introduction, please refer to the user interface chapter of the TPU-MLIR Technical Reference Manual):

Table 3.1 Function of model_transform parameters

Name

Required?

Explanation

model_name

Y

Model name

model_def

Y

Model definition file (e.g., .onnx , .tflite or .prototxt files)

input_shapes

N

Shape of the inputs, such as [[1,3,640,640]] (a two-dimensional array), which can support multiple inputs

input_types

N

Type of the inputs, such int32; separate by ‘,’ for multi inputs; float32 as default

resize_dims

N

The size of the original image to be adjusted to. If not specified, it will be resized to the input size of the model

keep_aspect_ratio

N

When the size of test_input is different from input_shapes, whether to keep the aspect ratio when resizing, the default is false; when set, the insufficient part will be padded with 0

mean

N

The mean of each channel of the image. The default is 0.0,0.0,0.0

scale

N

The scale of each channel of the image. The default is 1.0,1.0,1.0

pixel_format

N

Image type, can be rgb, bgr, gray or rgbd. The default is bgr

channel_format

N

Channel type, can be nhwc or nchw for image input, otherwise it is none. The default is nchw

output_names

N

The names of the output. Use the output of the model if not specified, otherwise use the specified names as the output

test_input

N

The input file for validation, which can be an jpg, npy or npz file. No validation will be carried out if it is not specified

test_result

N

Output file to save verification result with suffix .npz

excepts

N

Names of network layers that need to be excluded from validation. Separated by comma

mlir

Y

Specify the output mlir file name and path, with the suffix .mlir

After converting to an mlir file, a ${model_name}_in_f32.npz file will be generated, which is the input file for the subsequent models.

3.4. MLIR to F16 bmodel

To convert the mlir file to the f16 bmodel, we need to run:

$ model_deploy \
    --mlir yolov5s.mlir \
    --quantize F16 \
    --processor bm1684x \
    --test_input yolov5s_in_f32.npz \
    --test_reference yolov5s_top_outputs.npz \
    --tolerance 0.99,0.99 \
    --model yolov5s_1684x_f16.bmodel

The main parameters of model_deploy are as follows (for a complete introduction, please refer to the user interface chapter of the TPU-MLIR Technical Reference Manual):

Table 3.2 Function of model_deploy parameters

Name

Required?

Explanation

mlir

Y

Mlir file

quantize

Y

Quantization type (e.g., F32/F16/BF16/INT8), the quantization types supported by different processors are shown in the table below.

processor

Y

The platform that the model will use. Support bm1690/bm1688/bm1684x/bm1684/cv186x/cv183x/cv182x/cv181x/cv180x.

calibration_table

N

The calibration table path. Required when it is INT8/F8E4M3 quantization

tolerance

N

Tolerance for the minimum similarity between MLIR quantized and MLIR fp32 inference results

test_input

N

The input file for validation, which can be an jpg, npy or npz file. No validation will be carried out if it is not specified

test_reference

N

Reference data for validating mlir tolerance (in npz format). It is the result of each operator

compare_all

N

Compare all tensors, if set.

excepts

N

Names of network layers that need to be excluded from validation. Separated by comma

op_divide

N

cv183x/cv182x/cv181x/cv180x only, Try to split the larger op into multiple smaller op to achieve the purpose of ion memory saving, suitable for a few specific models

model

Y

Name of output model file (including path)

num_core

N

When the target is selected as bm1688, it is used to select the number of tpu cores for parallel computing, and the default setting is 1 tpu core

skip_validation

N

Skip bmodel correctness verification to boost deployment efficiency; bmodel verification is on by default

Table 3.3 Quantization types supported by different processors

Processor

Supported quantize

BM1688

F32/F16/BF16/INT8/INT4

BM1684X

F32/F16/BF16/INT8

BM1684

F32/INT8

CV186X

F32/F16/BF16/INT8/INT4

CV183X/CV182X/CV181X/CV180X

BF16/INT8

BM1690

F32/F16/BF16/INT8/F8E4M3/F8E5M2

After compilation, a file named yolov5s_1684x_f16.bmodel is generated.

3.5. MLIR to INT8 bmodel

3.5.1. Calibration table generation

Before converting to the INT8 model, you need to run calibration to get the calibration table. The number of input data is about 100 to 1000 according to the situation.

Then use the calibration table to generate a symmetric or asymmetric bmodel. It is generally not recommended to use the asymmetric one if the symmetric one already meets the requirements, because the performance of the asymmetric model will be slightly worse than the symmetric model.

Here is an example of the existing 100 images from COCO2017 to perform calibration:

$ run_calibration yolov5s.mlir \
    --dataset ../COCO2017 \
    --input_num 100 \
    -o yolov5s_cali_table

After running the command above, a file named yolov5s_cali_table will be generated, which is used as the input file for subsequent compilation of the INT8 model.

3.5.2. Compile to INT8 symmetric quantized model

Execute the following command to convert to the INT8 symmetric quantized model:

$ model_deploy \
    --mlir yolov5s.mlir \
    --quantize INT8 \
    --calibration_table yolov5s_cali_table \
    --processor bm1684x \
    --test_input yolov5s_in_f32.npz \
    --test_reference yolov5s_top_outputs.npz \
    --tolerance 0.85,0.45 \
    --model yolov5s_1684x_int8_sym.bmodel

After compilation, a file named yolov5s_1684x_int8_sym.bmodel is generated.

3.6. Effect comparison

In tpu_mlir package, there are yolov5 use cases written in python, using the detect_yolov5 command to detect objects in images.

This command corresponds to the source code path {package/path/to/tpu_mlir}/python/samples/detect_yolov5.py.

It can be learned how the model is used by reading the code. Firstly, preprocess to get the model’s input, then do inference to get the output, and finally do post-processing.

Use the following codes to validate the inference results of onnx/f16/int8 respectively.

The onnx model is run as follows to get dog_onnx.jpg:

$ detect_yolov5 \
    --input ../image/dog.jpg \
    --model ../yolov5s.onnx \
    --output dog_onnx.jpg

The f16 bmodel is run as follows to get dog_f16.jpg :

$ detect_yolov5 \
    --input ../image/dog.jpg \
    --model yolov5s_1684x_f16.bmodel \
    --output dog_f16.jpg

The int8 symmetric bmodel is run as follows to get dog_int8_sym.jpg:

$ detect_yolov5 \
    --input ../image/dog.jpg \
    --model yolov5s_1684x_int8_sym.bmodel \
    --output dog_int8_sym.jpg

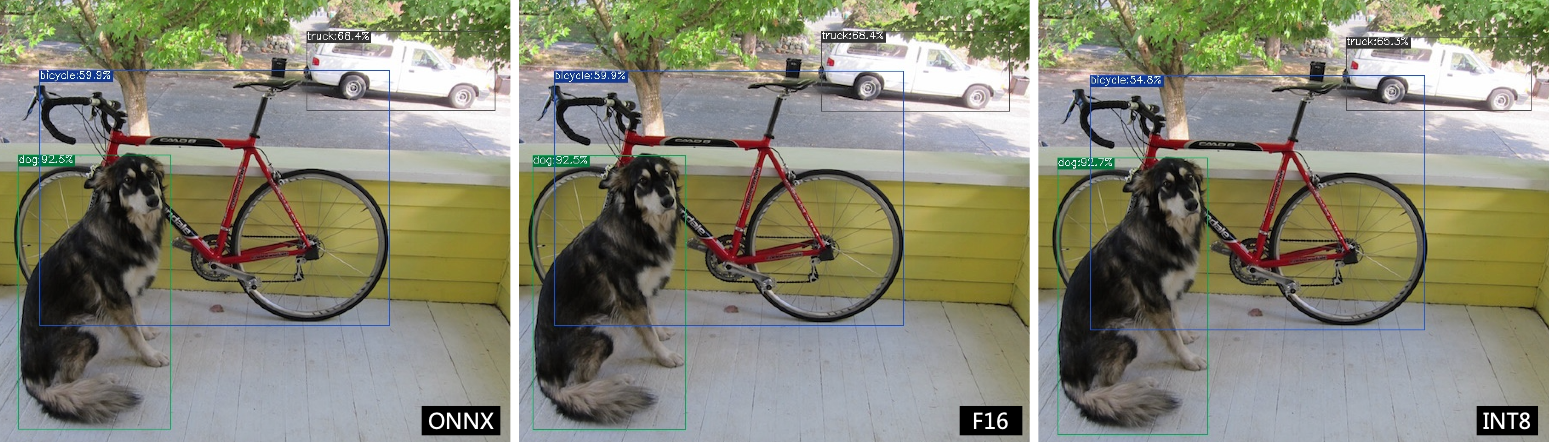

The result images are compared as shown in the figure (Comparison of TPU-MLIR for YOLOv5s’ compilation effect).

_images/yolov5s.png

Fig. 3.1 Comparison of TPU-MLIR for YOLOv5s’ compilation effect

Due to different operating environments, the final performance will be somewhat different from Fig. 3.1.

3.7. Model performance test

The following operations need to be performed outside of Docker,

3.7.1. Install the libsophon

Please refer to the libsophon manual to install libsophon.

3.7.2. Check the performance of BModel

After installing libsophon, you can use bmrt_test to test the accuracy and performance of the bmodel. You can choose a suitable model by estimating the maximum fps of the model based on the output of bmrt_test.

# Test the bmodel compiled above
# --bmodel parameter followed by bmodel file,

$ cd path/to/model_yolov5s/workspace
$ bmrt_test --bmodel yolov5s_1684x_f16.bmodel
$ bmrt_test --bmodel yolov5s_1684x_int8_sym.bmodel

Take the output of the last command as an example (the log is partially truncated here):

 1[BMRT][load_bmodel:983] INFO:pre net num: 0, load net num: 1
 2[BMRT][show_net_info:1358] INFO: ########################
 3[BMRT][show_net_info:1359] INFO: NetName: yolov5s, Index=0
 4[BMRT][show_net_info:1361] INFO: ---- stage 0 ----
 5[BMRT][show_net_info:1369] INFO:   Input 0) 'images' shape=[ 1 3 640 640 ] dtype=FLOAT32
 6[BMRT][show_net_info:1378] INFO:   Output 0) '350_Transpose_f32' shape=[ 1 3 80 80 85 ] ...
 7[BMRT][show_net_info:1378] INFO:   Output 1) '498_Transpose_f32' shape=[ 1 3 40 40 85 ] ...
 8[BMRT][show_net_info:1378] INFO:   Output 2) '646_Transpose_f32' shape=[ 1 3 20 20 85 ] ...
 9[BMRT][show_net_info:1381] INFO: ########################
10[BMRT][bmrt_test:770] INFO:==> running network #0, name: yolov5s, loop: 0
11[BMRT][bmrt_test:834] INFO:reading input #0, bytesize=4915200
12[BMRT][print_array:702] INFO:  --> input_data: < 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ...
13[BMRT][bmrt_test:982] INFO:reading output #0, bytesize=6528000
14[BMRT][print_array:702] INFO:  --> output ref_data: < 0 0 0 0 0 0 0 0 0 0 0 0 0 0...
15[BMRT][bmrt_test:982] INFO:reading output #1, bytesize=1632000
16[BMRT][print_array:702] INFO:  --> output ref_data: < 0 0 0 0 0 0 0 0 0 0 0 0 0 0...
17[BMRT][bmrt_test:982] INFO:reading output #2, bytesize=408000
18[BMRT][print_array:702] INFO:  --> output ref_data: < 0 0 0 0 0 0 0 0 0 0 0 0 0 0...
19[BMRT][bmrt_test:1014] INFO:net[yolov5s] stage[0], launch total time is 4122 us (npu 4009 us, normal 113 us)
20[BMRT][bmrt_test:1017] INFO:+++ The network[yolov5s] stage[0] output_data +++
21[BMRT][print_array:702] INFO:output data #0 shape: [1 3 80 80 85 ] < 0.301003    ...
22[BMRT][print_array:702] INFO:output data #1 shape: [1 3 40 40 85 ] < 0 0.228689  ...
23[BMRT][print_array:702] INFO:output data #2 shape: [1 3 20 20 85 ] < 1.00135     ...
24[BMRT][bmrt_test:1058] INFO:load input time(s): 0.008914
25[BMRT][bmrt_test:1059] INFO:calculate  time(s): 0.004132
26[BMRT][bmrt_test:1060] INFO:get output time(s): 0.012603
27[BMRT][bmrt_test:1061] INFO:compare    time(s): 0.006514

The following information can be learned from the output above:

  1. Lines 05-08: the input and output information of bmodel

  2. Line 19: running time on the Tensor Computing Processor, of which the processor takes 4009us and the non-accelerated part takes 113us. The time of the latter mainly refers to the waiting time of calling at HOST

  3. Line 24: the time to load data into the NPU’s DDR

  4. Line 25: the total time of Line 19

  5. Line 26: the output data retrieval time
