19. final.mlir Truncation Method

final.mlir, as the input file of codegen, is the final intermediate expression (IR) generated by the model after all hardware-independent and hardware-related optimizations. Because it contains hardware-related information, the structure is much more complicated than the previous IR.

When adapting the model, sometimes the MLIR file of the Tpu layer is inconsistent with the cmodel inference result of bmodel. In order to quickly locate the problem, in addition to using the bmodel_checker.py tool to compare the output of each layer, you can also manually truncate the final.mlir file to generate a truncated model.

Therefore, this chapter will analyze the structure of final.mlir and explain how to truncate the model based on final.mlir to facilitate subsequent problem location.

  • Recommended IDE: VSCode.

  • Plugin: MLIR.

19.1. final.mlir structure introduction

The components of a single operator in final.mlir are as follows:

_images/op_sample.png

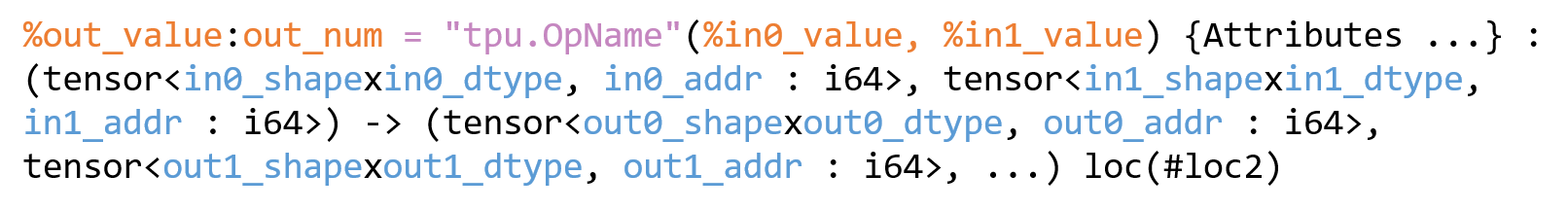

Fig. 19.1 final.mlir single operator example

Note:

  • value represents the input/output of the operator in SSA form

  • out_num: represents the number of outputs. If it is a single-output operator, :out_num will not be displayed.

  • For the value of a multi-output operator, the user will refer to it in the %value#in_index way (index starts from 0)

  • Each input/output value has a corresponding Tensor type.

  • A complete Tensor type contains shape, data type, and global memory address (Gmem addr).

In addition to the single operator, final.mlir also contains tpu.Group operators generated after LayerGroup, which contain multiple intermediate operators. These operators all complete calculations on Lmem. tpu.Group controls input data loading and output data storage through tpu.Load and tpu.Store, so the Tensor type of the intermediate operator does not have Gmem addr:

_images/group_op_sample.png

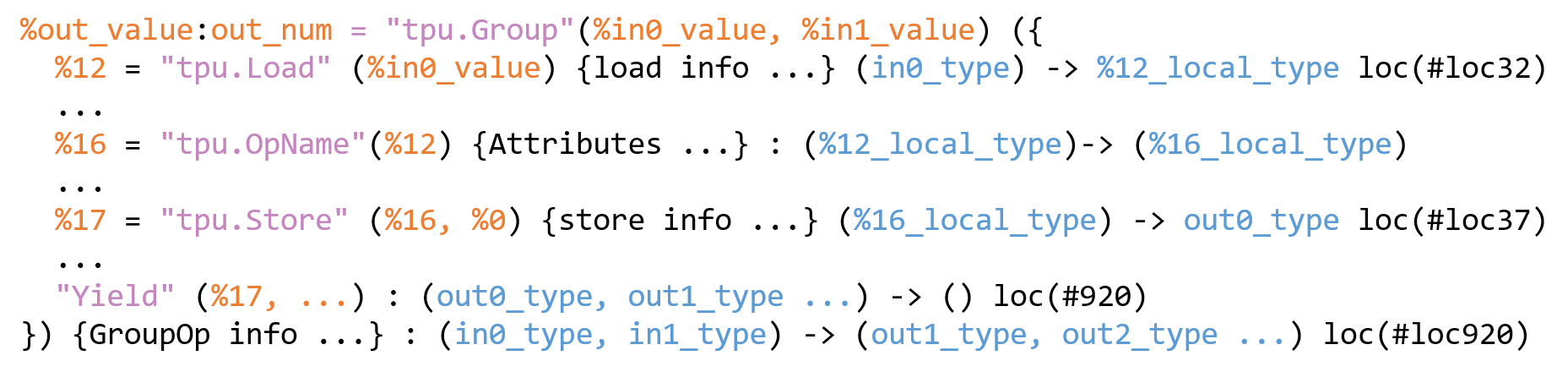

Fig. 19.2 tpu.Group example

  • local_type refers to Tensor type without Gmem addr.

  • loc(#loc32) at the end of the operator refers to the location of a layer output of the model, that is, the number of the output. The corresponding output name can be found at the end of the final.mlir file according to the number.

  • Yield represents the output set of tpu.Group.

The structure of the complete final.mlir file is as follows:

_images/final_mlir_sample.png

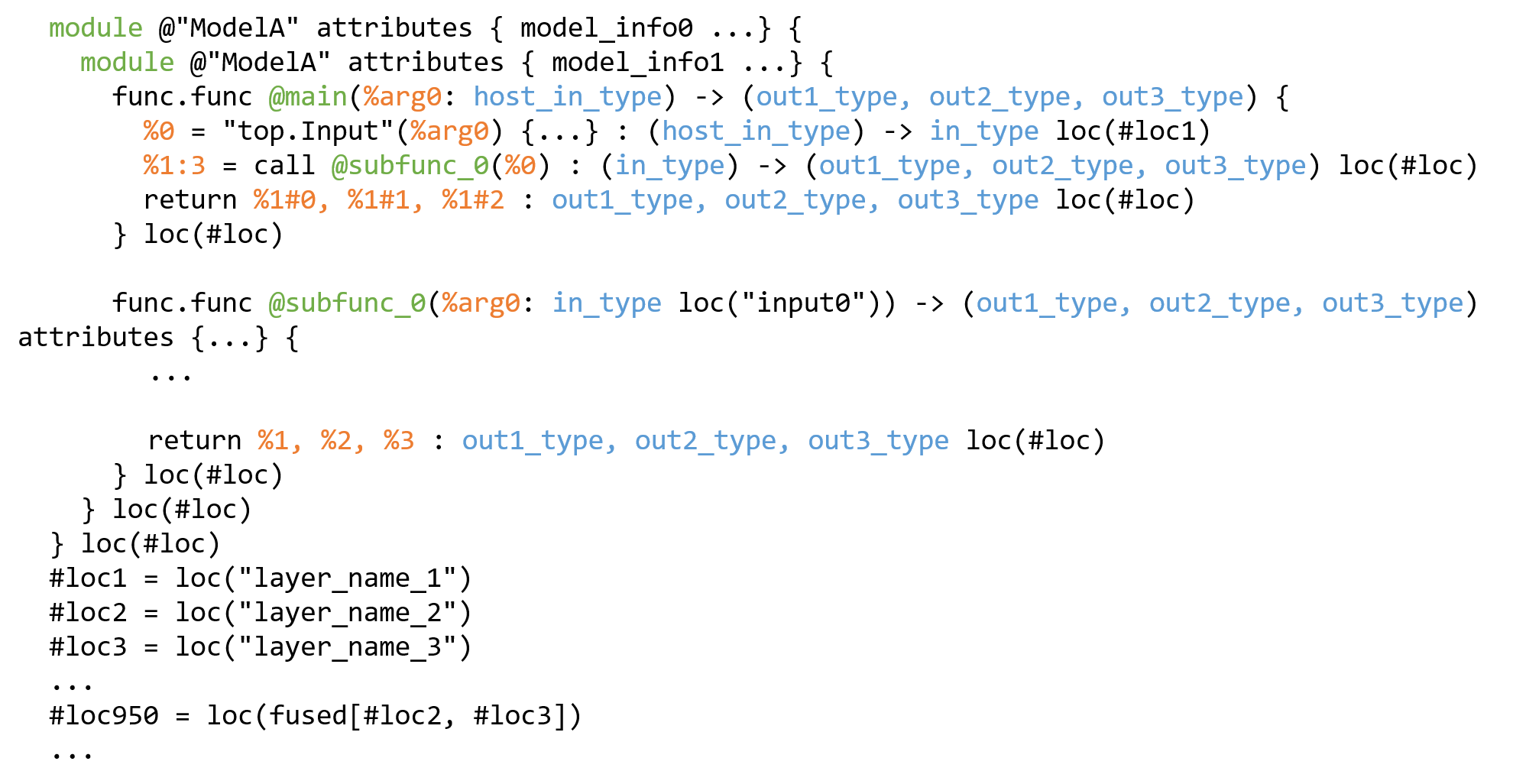

Fig. 19.3 final.mlir structure example

  • The double-layer module contains mainfunc and subfunc, and mainfunc and subfunc have a calling relationship.

  • arg0 in mainfunc refers to the input of the host side, so host_in_type does not have Gmem addr.

  • The location of multiple outputs will be added to the end of the final.mlir file, and the inclusion relationship with each specific output location will be expressed, such as #loc950 = loc(fused[#loc2, #loc3]).

19.2. final.mlir Truncation Process

  1. Modify subfunc. Delete the internal structure of subfunc, and match the return value value with the corresponding type:

_images/truncate_final_1.png

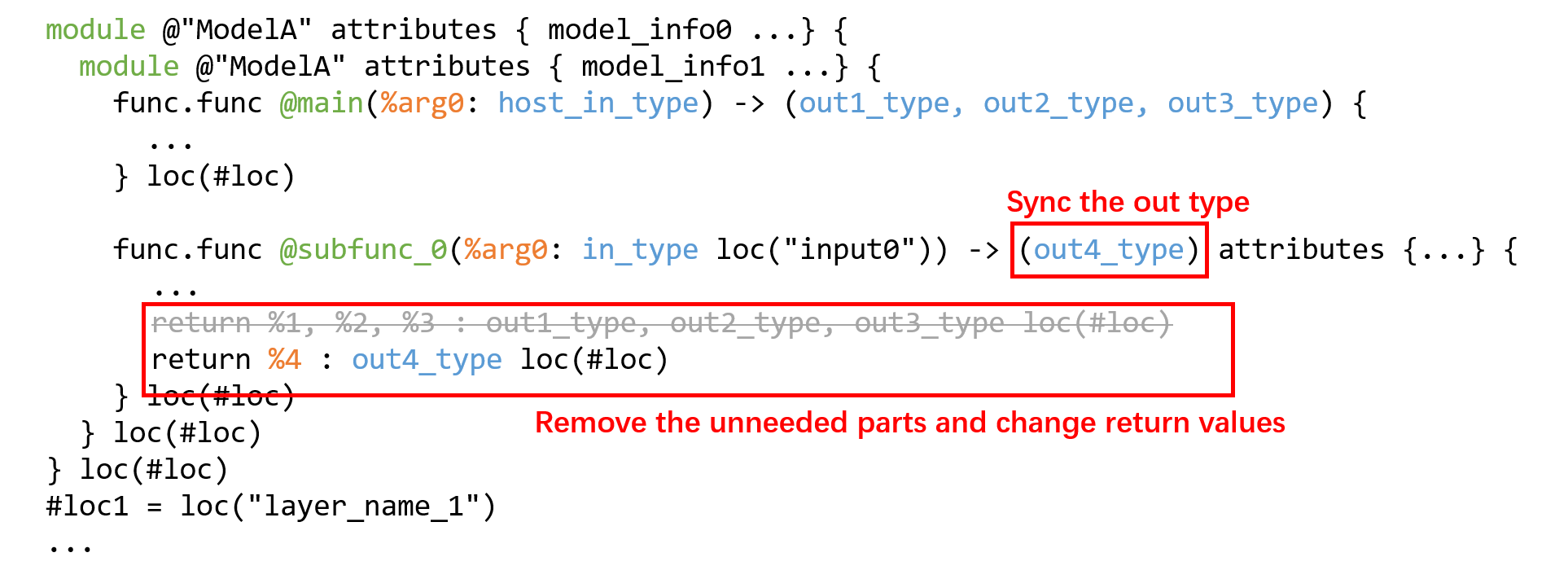

Fig. 19.4 Truncation process Step1

  1. Synchronize the calling method of subfunc in mainfunc (value and type):

_images/truncate_final_2.png

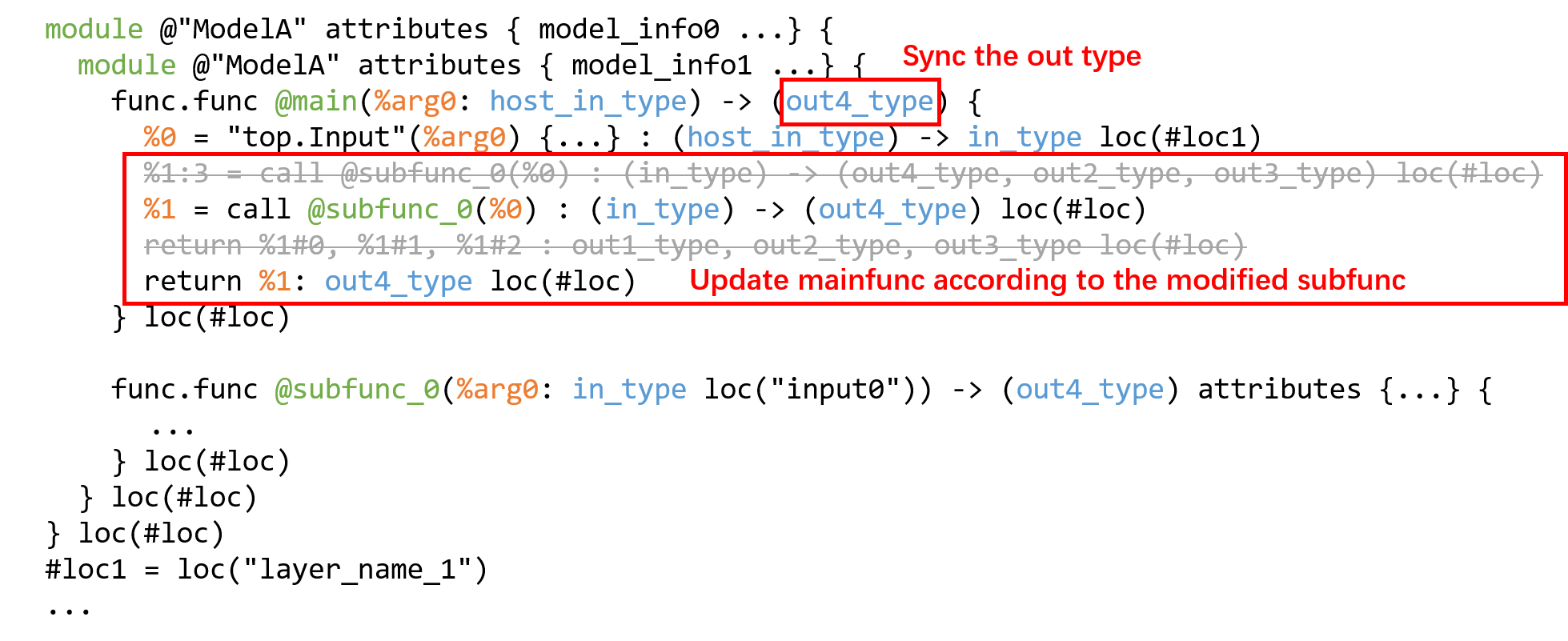

Fig. 19.5 Truncation process Step2

  1. Check whether bmodel is modified successfully. First, you can execute the codegen step to see if bmodel can be generated normally (please replace <…> with the actual file or parameter):

$ tpuc-opt <final.mlir> --codegen="model_file=<bmodel_file> embed_debug_info=<true/false> model_version=latest" -o /dev/null

When profile is needed for performance analysis, embed_debug_info is set to true.

  1. Use model_tool to check whether the input and output information of the bmodel meets expectations:

$ model_tool --info <bmodel_file>

Note:

  1. When truncating, the model structure is deleted in units of operators, and each tpu.Group should be regarded as an operator.

  2. Modifying only the function return value without deleting the redundant model structure may cause the output result to be wrong. This is because each activated Gmem addr allocation will be reused according to the activation life cycle. Once the life cycle ends, it will be allocated to the next appropriate activation, causing the data at the address to be overwritten by subsequent operations.

  3. It is necessary to ensure that each output of tpu.Group has user, otherwise the codegen step may report an error. If you do not want to output a certain result of tpu.Group and it is inconvenient to delete it completely, you can add a meaningless tpu.Reshape operator to the output without user, and match it with the same Gmem addr and location, for example:

_images/reshape_sample.png

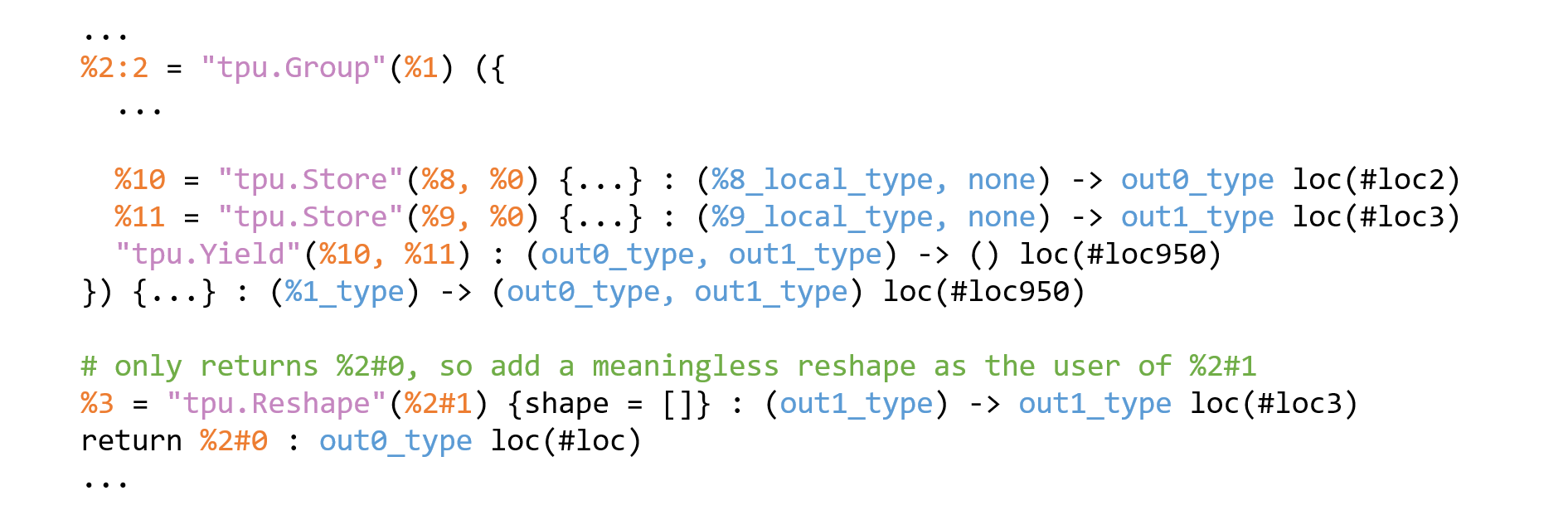

Fig. 19.6 reshape example

  1. After truncating the model, you can update the module.coeff_size information in the module module to reduce the size of the bmodel generated after truncation. The formula is as follows:

\[CoeffSize = NumElement_{weight} * DtypeBytes_{weight} + Addr_{weight} - CoeffAddr\]

In the above formula, weight refers to the last top.Weight in final.mlir after truncation. neuron (i.e., activation) is not recommended to modify because the address will be reused.
