4. Overall Design

4.1. Layered

TPU-MLIR treats the compilation process of the network model in two layers.

Top Dialect

Hardware-independent layer, including graph optimization, quantization and inference, etc.

Tpu Dialect

Hardware-related layer, including weight reordering, operator slicing, address assignment, inference, etc.

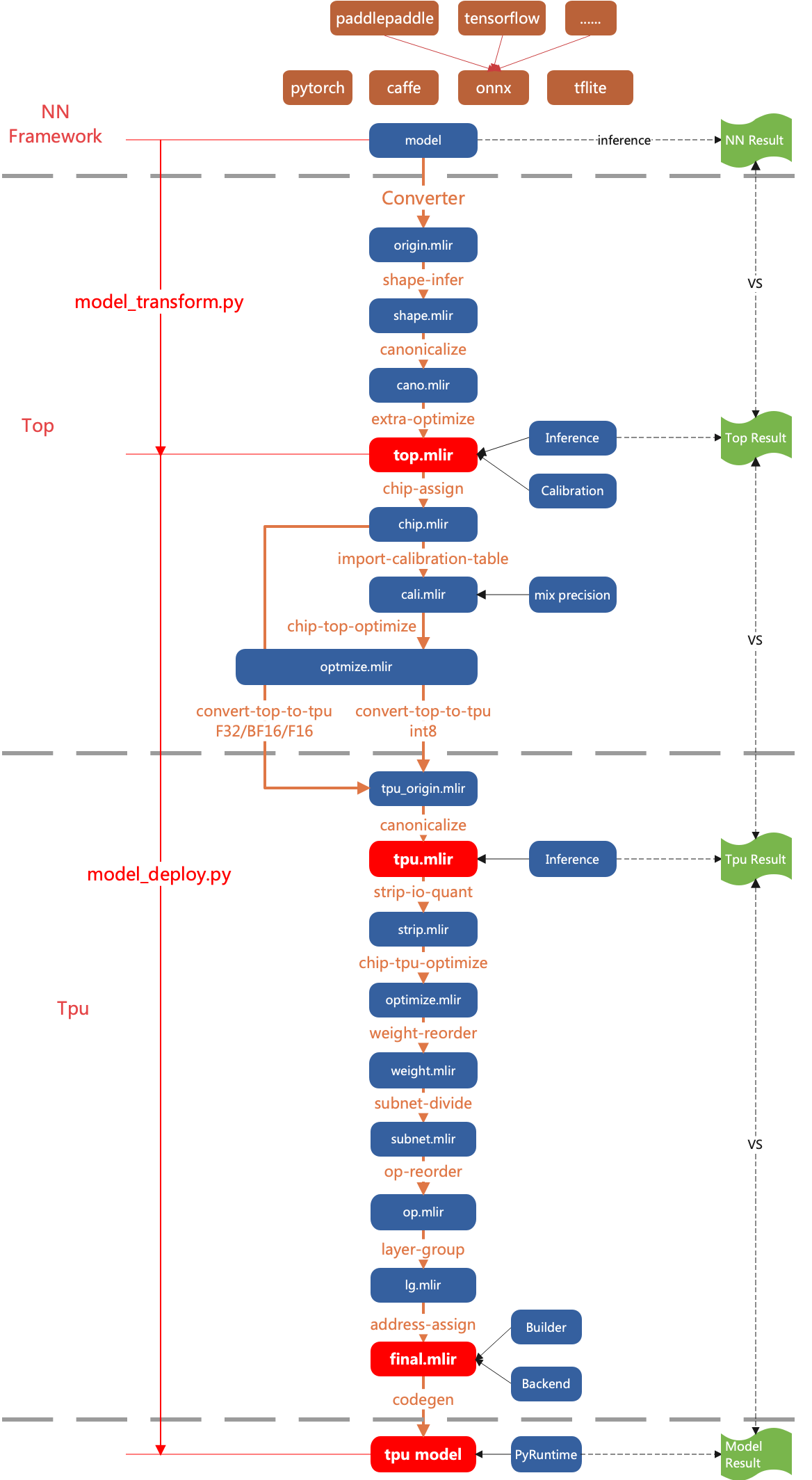

The overall flow is shown in the (TPU-MLIR overall process) diagram, where the model is gradually converted into final instructions by Passes. Here is a detailed description of what functions each Pass does in the Top layer and the Tpu layer. The following chapters will explain the key points of each Pass in detail.

Fig. 4.1 TPU-MLIR overall process

4.2. Top Pass

shape-infer

Do shape inference, and constant folder

canonicalize

Graph optimization related to specific OP, such as merging relu into conv, shape merge, etc.

extra-optimize

Do extra patterns, such as get FLOPs, remove unuse output, etc.

processor-assign

Assign processor, such as BM1684X, CV183X, etc; and adjust top mlir by processor, for example, make all CV18XX input types as F32.

import-calibration-table

Import calibration table, assign min and max for all ops, for quantization later.

processor-top-optimize

Do top ops optimization by processor.

convert-top-to-tpu

Lower top ops to tpu ops; if for mode F32/F16/BF16, top op normally convert to tpu op directly; if INT8, quantization is needed.

4.3. Tpu Pass

canonicalize

Graph optimization related to specific OP, such as merging of consecutive Requants, etc.

strip-io-quant

Input and output types will be quantized if true; or be F32

processor-tpu-optimize

Do tpu ops optimization by processor.

weight-reorder

Reorder the weights of individual OP based on processor characteristics, such as filter and bias for convolution.

subnet-divide

Divide the network into various subnets based on the processor type. If the Tensor Competing Processor can compute all operators, then it forms a single subnet.

op-reorder

Reorder op to make sure ops are close to their users.

layer-group

Slice the network so that as many OPs as possible are computed consecutively in the local mem.

address-assign

Assign addresses to the OPs that need global mem.

codegen

Use Builder module to generate the final model in flatbuffers format.

4.4. Other Passes

There are some optional passes, not in the diagram, used for special functions.

fuse-preprocess

Fuse image preprocess to model.

add-postprocess

add postprocess to model, only support ssd/yolov3/yolov5.
